Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: FCTEL
  • Model Number: FC-OV60
  • Wavelength: 850nm/1310nm/1550nm
  • Product name: 30 lines telephone transceiver
  • mode: single mode ,multi mode
  • fiber: 1 core fiber , 2 core fiber
  • Optical Connector: FC SC LC
  • telelphone: 60 POTS , FXO/FXS ,RJ45
  • Transmission Distance: 2km 20km 40km 60km 80km 100km 120km
  • managed: serial manage , snmp manage
  • addtional function: 4 ports E1 , 4 ports ethernet , data
  • Certification: ISO9001:2008 , CE

Packaging & Delivery

Packaging Details user's manual
power line
standard export carton package
Delivery Time 3days for mini package
Product Description

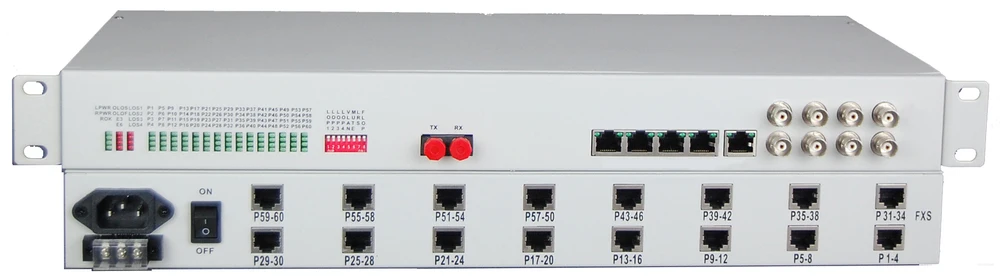

optical transceiver of 60 channel pcm multiplexer


FC-OV60  provides 60Channel telephone 1-4Channel E1 interface, 4Channel 10M/100M Ethernet interface (Line Speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.



High lights


  • Based on self -copyright  IC
  • E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
  • Voice port supports FXO and FXS port, EM2/4 audio interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
  • Voice FXO/FXS access, supports caller ID feature and reverse polarity billing functions
  • Support various sites mutual number allocation function
  • Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as    RS232/RS485/RS422/Manchester code; 1~4Channel voice, 1~8Channel switch , or two/four line audio and  so on
  • Ethernet interface supports10M/100M, half/full duplex auto- adaptable, support VLAN
  • 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
  • Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable )
  • The transmission distance is up to 2-120Km without interruption
  • AC 220V, DC-48V, DC24V can be optional

Technical parameters




Multi-mode Fiber


50/125um, 62.5/125um,

Maximum transmission distance: 2KM,62.5/125um  single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm


Single-mode Fiber


8/125um, 9/125um

Maximum transmission distance: 120Km

Transmission distance:120KM,9/125um  single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm


FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB


FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB


EM 2/4 Line


AD: 0dB

DA: -3.5dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB



Product size:    19 inch 1U  483X138X44mm(WXDXH)

Simple packaging:  522X198X82mm(WXDXH)

Piece weight: 2.1KG



Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤3W



Working environment

Working temperature: -10°C ~ 50°C
Working Humidity:        5%~95 % (no condensation)

Storage temperature:   -40°C ~ 80°C
Storage Humidity:         5%~95 % (no condensation


Network application
